The Irony of Cable Car Pranks on April Fools

For those who haven’t noticed yet, it’s April Fools today.

Of course, this means that a few media outlets have gone to great lengths to have a little fun and punk their audiences.

Hey look, it's a proposal that might potentially improve transportation. Ha ha. Jokes on you. Image from Isle of Wight Radio.

Look! It’s a proposal that might potentially improve transportation. Ha ha. Image from Isle of Wight Radio.

For gondolas, we’ve found two great stories so far: 1) A “green-lit” water-crossing cable car for the Isle of Wight, UK; and 2) A city-wide gondola network in Victoria, Canada.

The massive cable car proposal in Victoria is obviously ridiculous in that environment. But could maybe one or two strategically placed lines in the BC capital help improve transport and tourism? Of course. I see several interesting opportunities already.

As for the Isle of Wight prank, I honestly know nothing about the island. But from 30 seconds of Googling, it seems the island’s ferry system made 4.3 million trips across The Solent (strait) in 2012/2013.

Ferry routes. Image from Wighlink.co.uk.

Ferry routes. Image from Wighlink.co.uk.

There appears to be 3 ferry routes which range from ~6km (Lymington to Yarmouth, 40 minutes) to ~8km (Porsmouth to Ryde, 22 minutes) to ~11km (Portsmouth to Fishbourne, 45 minutes). The shortest distance between the island and the mainland is about ~4-5km.

For simplicity sake, we did a quick comparison between the Lymington to Yarmoth ferry route and a theoretical 3S system.

  • Frequency: Ferry @ 1 hour wait / 3S Gondola @ 35-person cabins every ~30 seconds
  • Travel Time: Ferry @ 40 minutes / 3S Gondola @ 12.5 minutes (assuming 6km, 8 m/s)
  • Capacity: Ferry @ 360 pphpd / 3S Gondola @ 4,000-5,000 pphpd

Judging solely on these three basic parameters above, a cable car can be designed to operate at a much superior level of service than the ferry. Furthermore in terms of environmental factors, average wind speeds of 27km/h may have little effect on a cable car’s performance.

Vietnam's Vinpearl Cable Car transports passengers

Vietnam’s 3.3km Vinpearl Cable Car is built with 9 towers (7 offshore towers in a seismically prone South China Sea) and transports passengers at heights of 115m. The cable car was actually built to replace the inefficient ferry system. Image by Flickr user gavindeas.

While it’s not possible to tell if a cable car can be economically viable at this time (depends on fare structure and volume), I suspect that adding another cross-strait transportation option may help drive down ferry ticket prices.

And this coincidentally might be important to locals and visitors since the strait is considered by many online commentators as one of the world’s most expensive stretches of water (single adult ticket costs US$14.25/£10).

I suppose the irony about this “joke” is there’s a good potential that there is significant technical and economical validity behind the idea. Despite the prank, this idea might actually deserve more analysis and attention.

Laughs and giggles aside, perhaps what is the most unsettling is this: while many of us in so called “developed” nations continue to mock and ridicule ropeways, many of those in “developing” nations have fully embraced the technology (see urban gondola map) and have decided to assess it based on its merits (rather than one’s preconceived notions).

For those who think a cross-Solent cable car is impossible, they might wish to take some inspiration from Vietnam’s 7.9km Hòn Thơm – Phú Quốc Ropeway. Best part is, the system has broken ground and scheduled to open in early 2017.



Want more? Purchase Cable Car Confidential: The Essential Guide to Cable Cars, Urban Gondolas & Cable Propelled Transit and start learning about the world's fastest growing transportation technologies.

26
Jan

2016

Rider’s Digest: Leitner Ropeways’ Tricable Gondola Lifts

The following summarizes 16-page glossy brochure on LEITNER’s 3S system. Also known as ‘tricable gondolas’, they have single haul rope and two carrying ropes.

Rittner Seilbahn in Renon, Italy.

Rittner Seilbahn in Renon, Italy.

Tricable gondolas features detachable grips and offers the highest transport capacity of all aerial technologies. They guarantee increased wind resistance and can also cross major spans of over 2,500 meters between towers. Cabins can be slowed in the stations — or even be stopped completely — for additional comfort when riders enter and exit the cabin.

Capacity: up to 6,000 people/h

Speed: up to 8.5 m/s

Cabin capacity: up to 35 people



Cabins are Co-Designed by Pininfarina, Ferrari and Maserati designers

Highlights:

  • Wide entryway speeds boarding and deboarding.
  • Seats 28 comfortably with standing room for 7 more.
  • Sophisticated lighting concept developed in collaboration with Bartenbach Lighting Design is tailored to your corporate colour scheme.
  • Collaboration with qpunkt, automotive air conditioning experts, produced a new climate control concept with continuously variable air volume and improved air-flow velocity.
  • Supercaps energy concept employs a roller generator and solar panels to power a multimedia system with high-resolution LCD screens, WiFi and sound system.
3S Symphony Cabins.

3S Symphony Cabins.

The Leitner 3S Cabin

Highlights:

  • Manufacturing technologies and precision components are like those used in aircraft construction.
  • Milled from solid pieces, most parts require no safety welds. Meaning? Greater stability but lower weight.
  • Additional two-way rollers in the station and garaging areas can travel on the smallest curve radii.
  • Safety: each carriage’s unique vehicle detector indicates possible roller defects. So operators know exactly where to inspect track rollers. Then, the affected vehicle can be safely transported to the end station.
  • Removable grip reduces maintenance requirements.
  • Comfort: Each carriage’s lateral damping system ensures greater wind resistance and eliminates swaying.
  • Eco-friendly roller generator contributes to the power supply in the cabin.
  • Colours of all parts can be customized to your corporate standards, except for rollers and grips.



The Advantages of the Leitner 3S System

Simple Rope Deflection

Lifts are equipped with a single haul rope deflection mechanism. LEITNER 3S systems only require four sheaves. Up to two drive sheaves and one return sheave are installed in the drive station. There is one return sheave in the return station.

+ Longer service life

+ Lower maintenance costs



Optimum Redundancy for Maximum Safety

If required, an independent drive can be installed for both drive sheaves and the emergency/evacuation drive. Of course, the LEITNER DirectDrive can be used.

+ Maximum safety

+ Greater availability



Patented Haul Rope Roller with Spring System

The lift-off load on the haul rope is minimized by the spring roller system on the support towers. The lower lift-off height results in fewer vibrations on the haul rope and considerably lower loading of the carrying ropes by the carriage rollers.

+ Increased service life of the carrying ropes

+ Quieter ride



Optimized Accessibility

All mechanisms are directly accessible and thus easy to check and adjust. The outer station turnaround is accessible while walking upright for ergonomic and safer working.

+ Simplified maintenance

+ Safety for maintenance staff



The Flexible Switch Points System

The switch points are designed for optimum flexibility. The rapid switching cycles allow the vehicles to be pushed in and out during operation. The garaging procedure can be executed at running speed. The compartment-style system enables manual control of the switch points.

+ Flexibility

+ Time savings

+ Availability



Compact Station Design

The low installation height reduces cubage and costs. The new 3S carriage permits minimal curve radii in the station and the very narrowest curves in both directions in the garaging area.

+ Cost savings

+ Flexibility

3S Prodains Gondola

3S Prodains Gondola

Examples of LEITNER Tricable Gondolas In Situ

The brochure closes with summaries of working and coming Leitner tricable systems. (The beautiful mountain vistas may be distracting for urban planners considering transit issues but the statistics are useful.)



Ritten/Bozen, Italy

Inclined length: 4,544 m

Vertical rise: 949 m

Transport capacity: 726 people/h

Power: 900 kw

Total vehicles: 10

Total towers: 7



Les Prodains, France

Inclined length: 1,751 m

Vertical rise: 576 m

Transport capacity: 2,400 people/h

Power: 2x 530 kw

Total vehicles: 4

Total towers: 2



Stubaier Gletscher, Austria

Inclined length: 4,092 m

Vertical rise: 1,137 m

Transport capacity: 3,000 people/h

Power: 2x 530 kw

Total number of vehicles: 48

Opening: 2016



Zermatt, Switzerland

Inclined length: 3,760 m

Vertical rise: 900 m

Transport capacity: 2,000 people/h

Total number of vehicles: 25

Opening: 2018



Download the complete brochure here.



Materials on this page are paid for. Gondola Project (including its parent companies and its team of writers and contributors) does not explicitly or implicitly endorse third parties in exchange for advertising. Advertising does not influence editorial content, products, or services offered on Gondola Project.



Want more? Purchase Cable Car Confidential: The Essential Guide to Cable Cars, Urban Gondolas & Cable Propelled Transit and start learning about the world's fastest growing transportation technologies.

05
Oct

2015

Medellin/Caracas, Part 1

Last week I travelled to Medellin, Colombia and Caracas, Venezuela to tour five of the most important CPT systems in the world. This is Part 1 of a photo essay on those systems. In this part, a brief overview of the history of cable transit in this part of the world will be explained. Image by Steven Dale.

HISTORY

Modern Cable Propelled Transit started in Caracas, Venezuela with the Mount Avila Gondola. This system was originally built in the middle of the last century to carry people from Caracas to the top of Mount Avila where the luxurious Hotel Humboldt had been built. Political and economic strife caused the government to leave for neglect both the hotel and gondola. The gondola itself was not reopened until 1999, after a successful rebuild.

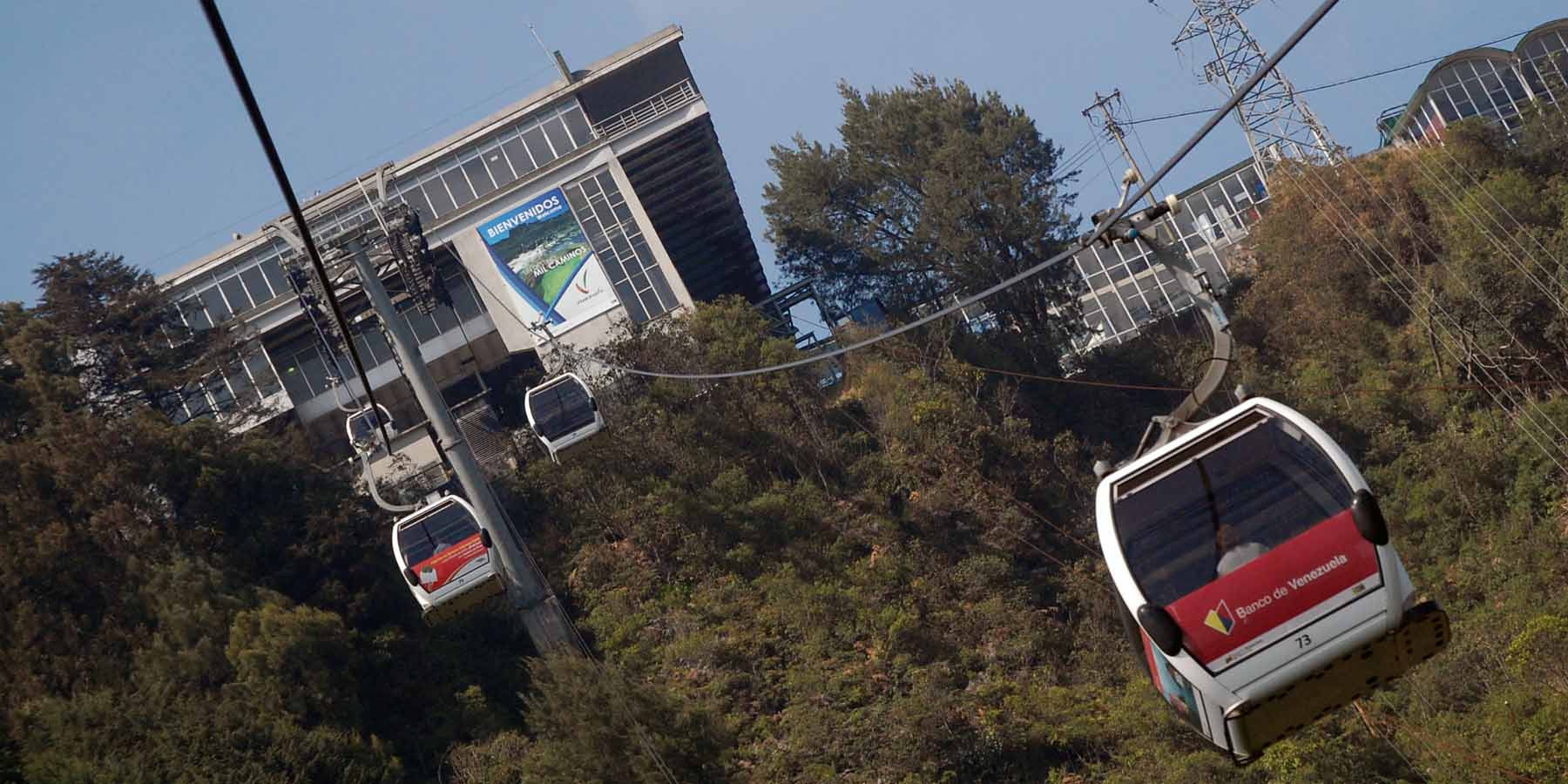

The Avila Mountain Gondola In Caracas. Image by Steven Dale.

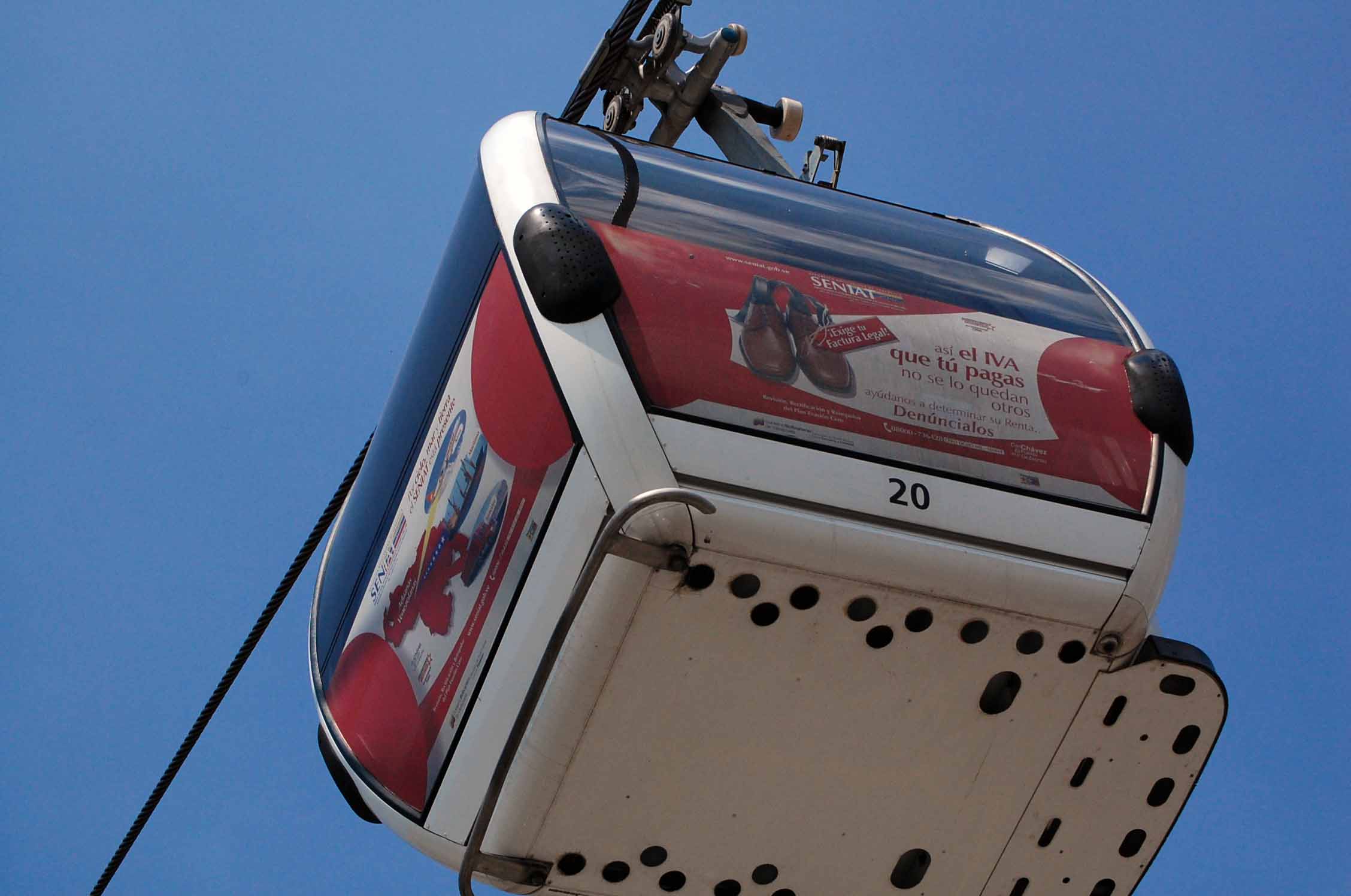

An Avila Mountain Gondola From Below. Image by Steven Dale.

A gondola passes over two original and well-preserved antique gondola cars at the Mount Avila Caracas Terminal. Image by Steven Dale.

The Avila gondola cannot, however, be truly classed as cable transit. It lacks integration to the local transit network and really exists more for tourists, not local commuters. It did, however, indirectly inspire the nearby city of Medellin, Colombia to pursue a fully-integrated CPT system to serve the impoverished and dangerous barrio of Santo Domingo. The system would take almost 5 years to open, from conception to fruition and would be the world’s first true CPT system. They would name it The Metrocable. The first line, consistent with the city’s existing Metro system, would be named Linea K.

A Linea K Metrocable Car in Medellin, Colombia. Image by Steven Dale.

The Metrocable over top the Santo Domingo barrio. Image by Steven Dale.

Gondolas depart a Linea J Metrocable station. Image by Steven Dale.

Metrocable Linea K would be an enormous success. Crime rates in Santo Domingo plunged and area investment skyrocketed. In the four years since Linea K opened, crime in Santo Domingo virtually disappeared, jobs have increased 300% and 3 banks have opened along the Metrocable route. With such an obvious success story, Metro officials had little trouble convincing decision-makers to open Linea J.

Unlike Linea K, Linea J would connect several smaller barrios in the western end of the city. These barrios suffered from similar economic conditions but did not have the population density that Linea K had. This was considered a good thing as Linea K suffered from overcrowding almost immediately upon opening, a situation not witnessed on Linea J.

A Linea J gondola. Image by Steven Dale.

Meanwhile, Hugo Chavez, President of Venezuela was not to be undone. The opening of the second Metrocable line in Medellin made Chavez lust after a similar system in Caracas, the capital of Venezuela. Within 2 years, Chavez’s dream would be realized with Caracas opening their own cable transit system in early 2010. It was also to be named The Metrocable.

Like the Medellin systems before it, the Caracas Metrocable would provide transit to under-serviced barrios with a history of crime and poverty. But unlike the Medellin systems, Caracas would feature enormous stations that included social facilities such as gymnasiums, police stations, community centres and markets. The Caracas Metrocable would also be the first in the world to feature extreme 90 degree turning radii at stations.

Gondolas enter and exit a station in Caracas. Image by Steven Dale.

The Caracas Metrocable. Image by Steven Dale.

The Metrocable loop between Medellin and Venezuela came full circle in early 2010. While Chavez was opening his first system in Caracas, Medellin was opening their third Metrocable line. But this time, the line looked more similar to the original Mount Avila system from Venezuela circa 1999.

While still fully-integrated into the Medellin Metro, the new Linea L services the Parque Arvi at the top of a nearby mountain in Medellin and requires an additional fare of 1,550 Colombian Pesos (roughly $1 US dollar). Linea L would give quick, affordable access to wilderness and parkland facilities that had previously only been accessible to wealthy land-owners in Medellin. This was a welcome change, given Colombia’s historically wide gap between rich and poor.

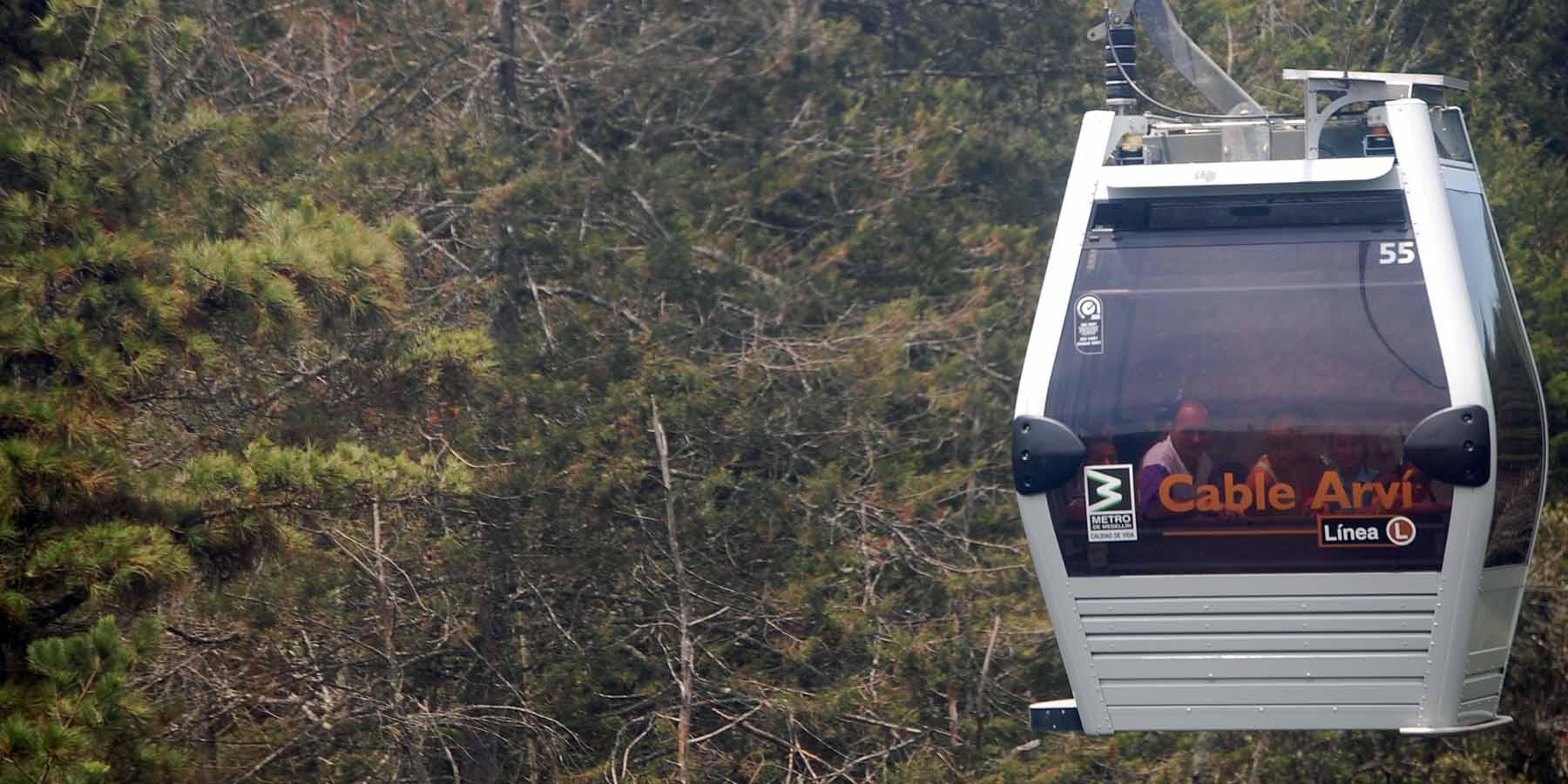

A Linea L gondola. Image by Steven Dale.

Medellin as seen from the Linea L, Parque Arvi nature preserve. Image by Steven Dale.

Both cities are engaged in major plans to expand their Metrocable offerings and cities throughout Latin America are embarking upon cable transit plans of their own.

Read Part 2.
